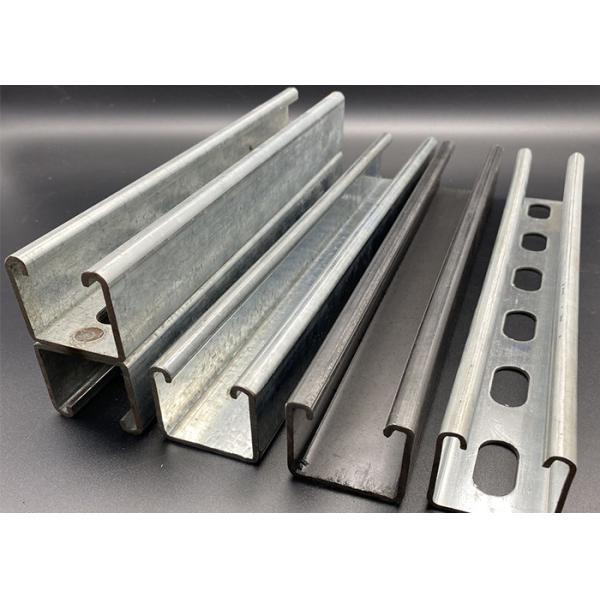

41x41 41x21 Powder Coated Slotted Strut Channel
Products : Slotted Strut Channel
Strut channel is usually formed from metal sheet, folded over into an open channel shape with inwards-curving lips to provide additional stiffness and as a location to mount interconnecting components. Strut usually has holes of some sort in the base, to facilitate interconnection or fastening strut to underlying building structures.
Features:
1) easy & flexible in installation, low cost
2) samples & catalogs are free
3) all size are available
Applications:
Strut channel is used to mount, brace, support, and connect lightweight structural loads in building construction. These include pipes, electrical and data wire, mechanical systems such as ventilation, air conditioning, and other mechanical systems. Strut channel is also used for other applications that require a strong framework, such as workbenches, shelving systems, equipment racks, etc. It is available to tighten nuts; bolts inside, especially for sockets.
Specifications:
Specification: 41x41,41x21,41x62,41x82
Thickness: 1.5mm, 2.0mm, 2.5mm
Length: 2000mm , 3000mm, 6000mm or customization
Material: Q235 carbon steel/Stainless steel 304/Stainless steel 316/
Surface finish:Hot Dip Galvanized/Electro Zinc/Powder coated
| Part No. | Size | Thickness(mm) | Length(m) | Finish |
| KK-4121 | 41x21 (1-5/8x13/16) | 1.5/2.0/2.5 | 2.4/3/5.8/6 | PG/HDG/PC/SS304/SS316 |
| KK-4141 | 41x41 (1-5/8x1-5/8) | 1.5/2.0/2.5 | 2.4/3/5.8/6 | PG/HDG/PC/SS304/SS316 |
| KK-4162 | 41x62 (1-5/8x2-7/16) | 1.5/2.0/2.5 | 2.4/3/5.8/6 | PG/HDG/PC/SS304/SS316 |
| KK-4182 | 41x82 (1-5/8x3-1/4) | 1.5/2.0/2.5 | 2.4/3/5.8/6 | PG/HDG/PC/SS304/SS316 |
| KK-4125 | 41x25 (1-5/8x1) | 1.5/2.0/2.5 | 2.4/3/5.8/6 | PG/HDG/PC/SS304/SS316 |
Product Show:
